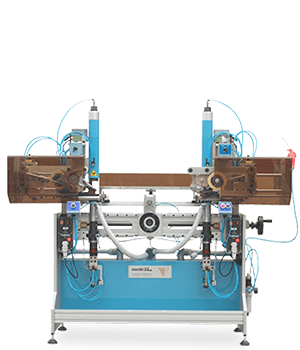

COMBI 22
Drilling and/or Pinning and Taping of Drillstacks
• Compact and Robust
• High productivity
• Easy to operate
OPERATION
– Drilling, Pinning & Taping simultaneously on pin sides
– Additional Taping only on long sides
– Spindle/Cylinder positioning by Handwheel using accurate
Mechanical Counters
– Pneumatic securing of Spindle/Cylinder position
– Hydraulic Brakes for Z-Axis damping feed (fast approach, regular feed, no exit burr)
– Automatic Pin Feed
– 4 Taping Heads (2 left, 2 right) with adjustable distances between tapes
– Adjustable Tape Length on Entry Material
SPECIFICATIONS
- 2 drilling & pinning heads (1 left, 1 right)
- 4 taping heads ( 2 left, 2 right)
- Machine dimensions: L 69.3″ x D 29.5″ x H 57.1″ (1760 x 750 x 1450 mm)
- Weight: 639 lbs (290kg)
- Pin length: 0.70″ – 0.79″ (18 -20mm)
- Pin diameter: 0.12″ – 0.125″ (1/8″) – 0.158″ – 0.197″ (3.0 – 3.175 – 4.0-5.0mm)
- Stack dimensions min: 11″ x 13.8″ (280 x 350mm)
- Stack dimensions max: 28.35″ x 23.6″ (720 x 600mm)
WORKING CYCLE
– Reinforced cylinder for high stacks
– Automatic axes positioning
– 3rd hole anti rotation device
– Electronic cycle counter
– Guillotine for vacuum cut
EXTRA FOR MULTILAYER PINNING
Lowering Drill Spindle to set Pin Centering Device instead (No Drilling, just Pinning & Taping, see image 1).
