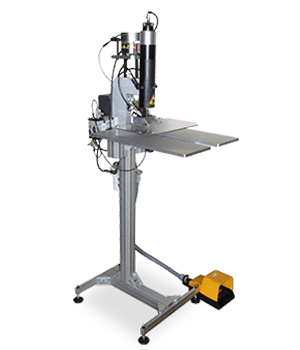

PINNING SINGLE

Semi automatic single head MLB Pinning Machine.

• Including vibration for Automatic Pin Feeding Pinning of Pre-existing Holes

SPECIFICATIONS

  • Pin length: 18-20mm (0.70″ – 0.79″)
  • Pin diameter: 3.0 – 3.175mm – 4.0 -5.0mm (0.12″ – 0.125″ – 0.158″ – 0.197″)
  • Working range: Unlimited
  • Dimensions: 490 x 1650 x 590 mm (L 19.3″ x D 65″ x H23.2″)
  • Weight: 42 kg (93lbs)

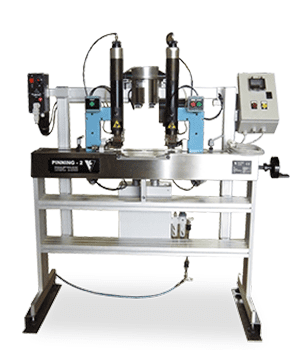

PINNING TWIN

Semi automatic double head MLB Pinning Machine

• Including vibration for Pin Feeding Pinning of Pre-existing Holes

SPECIFICATIONS

  • Pin length: 18-20mm (0.70″ – 0.79″)
  • Pin diameter: 3.0 – 3.175mm – 4.0 -5.0mm (0.12″ – 0.125″ – 0.158″ – 0.197″)
  • Working range: Max 700 x 700mm (27.6″ x 27.6″)
  • Dimensions: 720 x 1500 x 1,700 mm (L 28.3″ x D 59.1″ x H69.7″)
  • Weight: 42 kg (93lbs)
