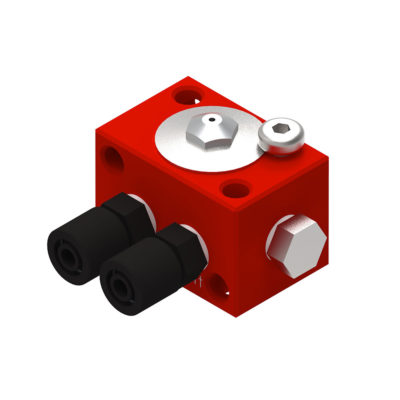

Spray head PBMJ

Small spray head for tight installation spaces
SKU: N/A Categories: ,



Small spray head for tight installation spaces.
The amount is set at the front of the spray jet outlet.
The lines can be mounted at a 90 ° angle or to the side.
Due to the individual feed and the small cross-sections, this spray head is only partially suitable for viscous, strongly adhesive liquids.

Our PCJ spray head is available in two versions:

  • The PBMJ spray head has an M5 thread for attachment to a bracket provided by the customer.
  • The PBMJ spray head has a spherical connector. This allows it to be attached individually and precisely with the flexible HPM technology brackets .

All of our spray heads are available individually or as a spray head group. The spray head group contains air and liquid connections (check valve) for the manifold.


VISCOSITY RANGE: up to 2,300 mm² / s (20 ° C) or 500 mm² / s (40 ° C)
PRESSURE AREA: Low pressure range from 0.5 – 2.5 bar
AIR CONSUMPTION: 2.0 – 5.5 L / min per nozzle
FLUID CONSUMPTION: 0.04 – 2.3 L / h (with water)
SPRAY JET: Almost round full cone of approx. 15 ° The spray distance between the spray nozzle and the wetted object should ideally not be greater than 200 mm. This then results in a sprayed area of ​​up to approx. Ø 50 mm.


Additional information


M5 Thread, Ball Socket


Spray Nozzle, Spray Group
