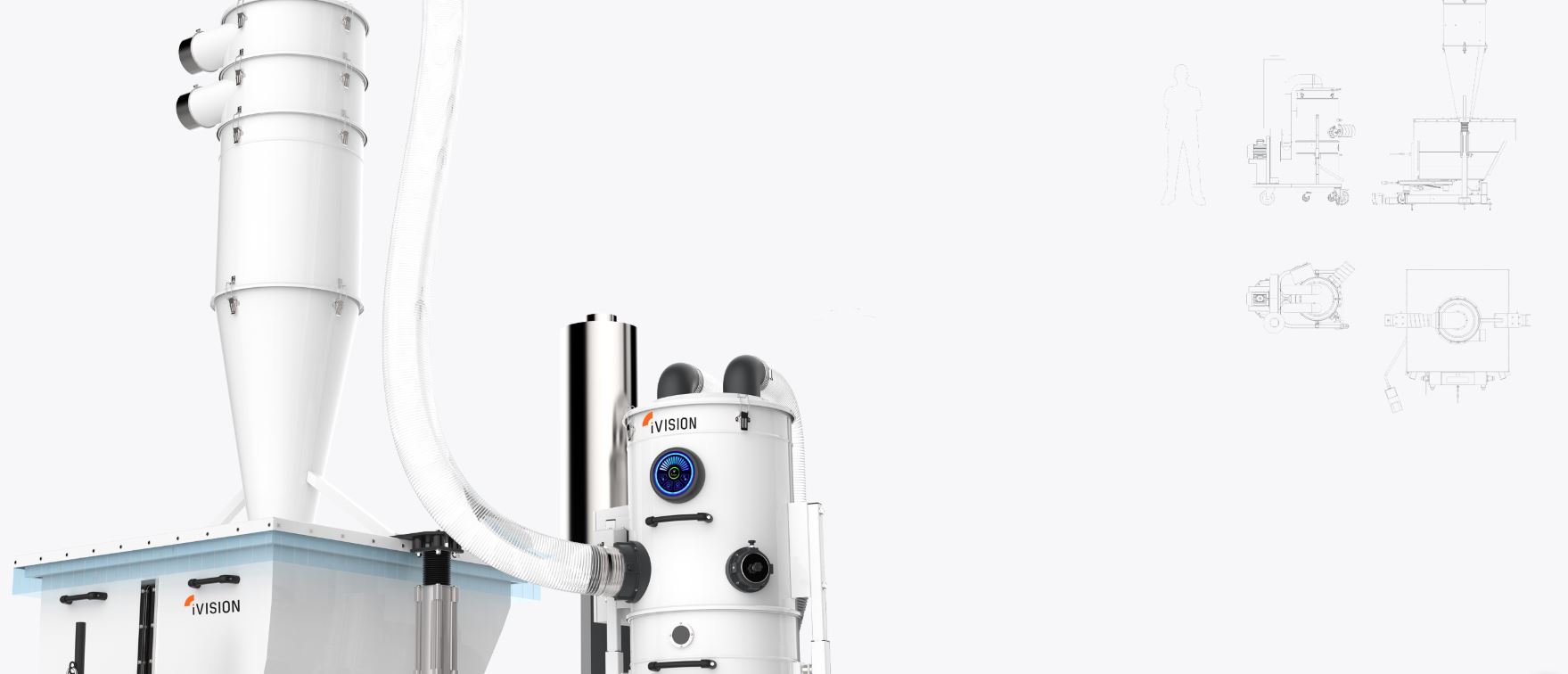

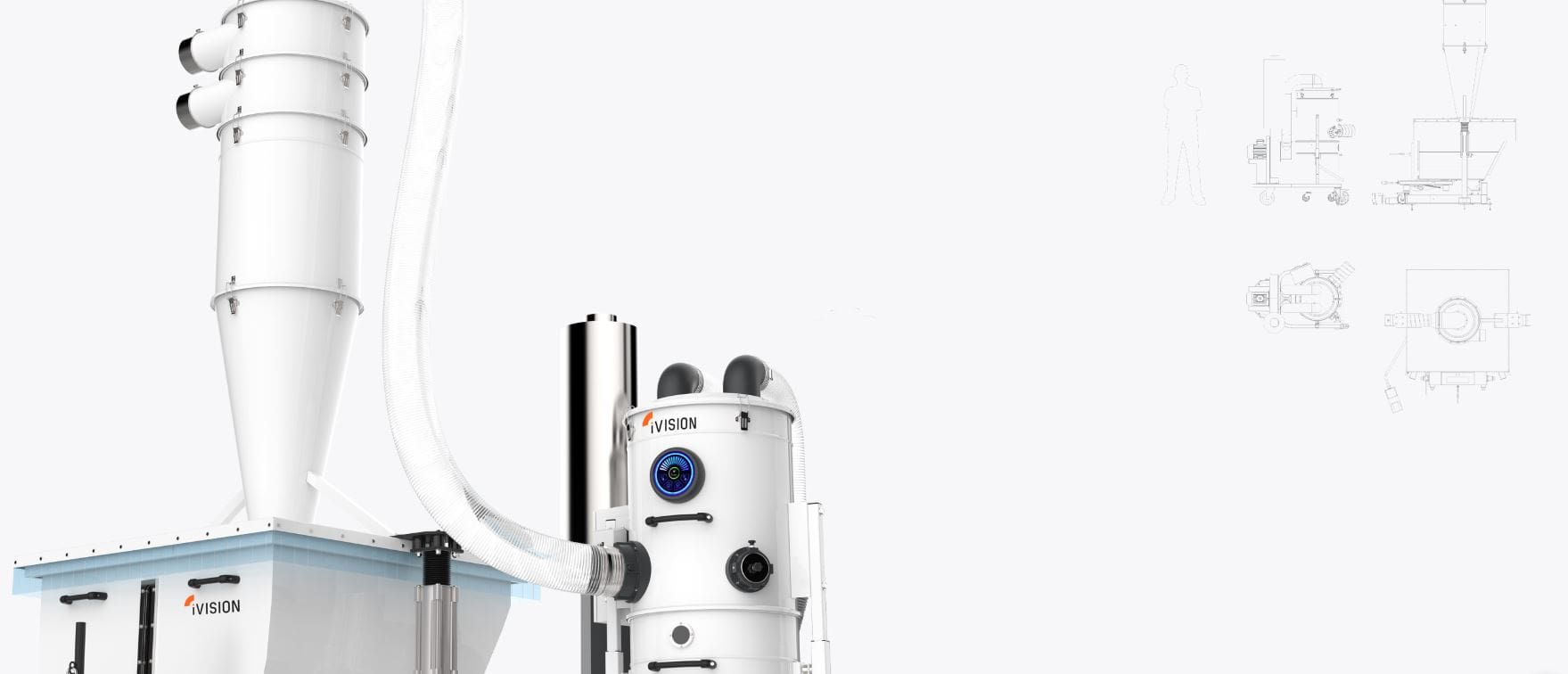

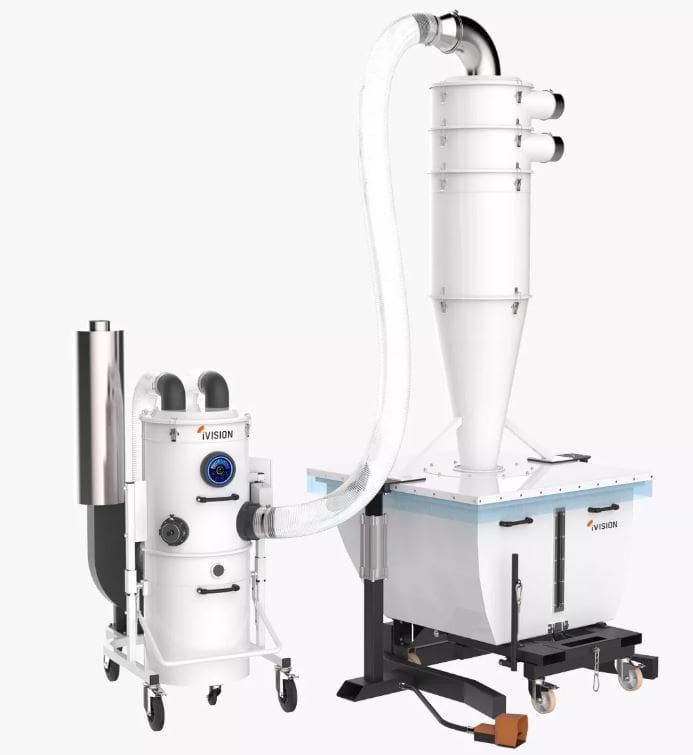

iV4 EXTRUSION
INDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS

The iV4 chip collectors of the Extrusion line are dedicated to intensive and continuous machining and are used alongside large double-head saws or automatic cutting centers with a high chip production. In general, chip collectors iV4 with 1000 litre storage buckets are used in all work environments where large amounts of chips and dust are produced. The world’s leading extrusion manufacturers have been using iVision line iV4 systems for several years. Thanks to the high chip collection capacity (up to 1000 litres) and the automatic lid opening system, iVision iV4 is particularly appreciated in the world of the extrusion industry.

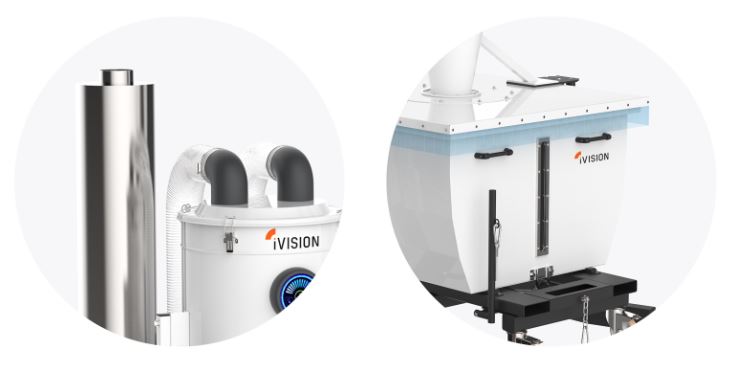

STANDARD SUPPLY

  • High-flow centrifugal fan with a flow rate up to 2200 m³/h
  • Visual filling indicator
  • Anti-scuff wheels with parking brake
  • Structure completely made of steel
  • Polyester filters in M class
  • Container capacity 500/1000 litres
  • Cyclonic pre-filter to preserve the life of the filter inside the vacuum unit
  • Quick release device to open the 160 litre container
  • Silencer to reduce noise level in accordance with regulations
  • Pneumatic vibrating motor for the filter cleaning

OPTIONAL

  • Remote Start/Stop control
  • Kit for collecting chips into PVC bags
  • Cleaning kit for post-work machine cleaning
  • Antistatic kit
  • 500/1000-litre additional storage bucket for quick emptying
  • Lift kit to prevent operator effort during the 160 litres container emptying process
  • Atex zone 22
