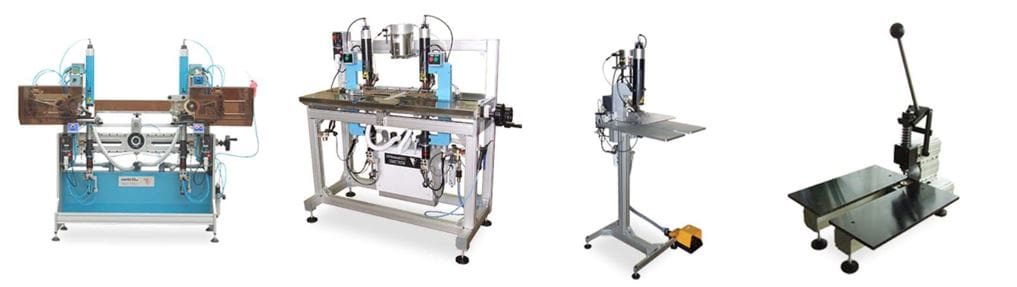

VF Pinning Machines

  • Pinning machines continue to be used to create stacks for double sided
  • Pinning machines are now being used for pinning multilayers that have been aligned ad center
  • Pinned stacks are required for autoload
  • Some of the machines now include taping the stack in addition to the pinning
Octopus Combi 22 Spinamatic Pinning Twin

Pinning Single

 Hand Press Unipin
Mode of Operation Automatic Semi-automatic Semi-automatic Semi-automatic Manual Manual
Drilling (Double Sided) Yes Yes Yes No No No

Pinning (Double Sided & Tooled Multilayer)

 Yes Yes Yes Yes Yes No

Taping Heads & Quantity

(Completed Stacks)

 Yes – 4 Yes – 4 No No No No
Maximum Panel Size 26.4” x 21.1” 28.35” x 23.6 27.6” x 27.6” 27.6” x 27.6” – –
Minimum Panel Size 13.8” x 15” 11” x 13.8” 11” X 13.8” 11” x 13.8” – –
VIbra- Pin Feeder Yes Yes Yes Yes Yes No

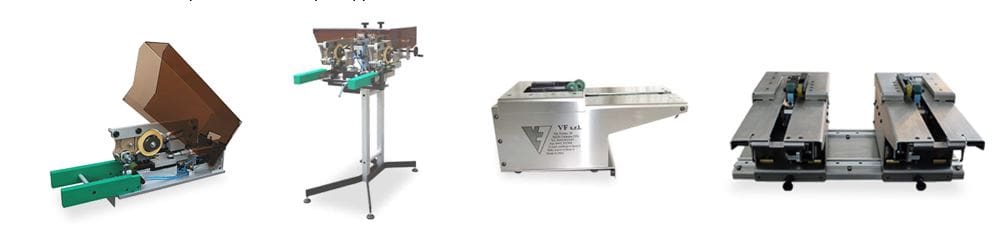

VF Taping Machines

  • Holds stack together for loading stack onto the work table or into an
  • Clean shear on the bottom side of the stack eliminates tape residue that common from manual tape
  • Tape location is adjustable and the amount of tape of the entry side of the panel is minimized.
  • Tape amount used per application is minimized

 Taping Single -Pneumatic Taping Twin –  Pneumatic Taping Single Pneumatic – Large

Taping Single Mechanical

Taping Twin Mechanical

Fixtured

 – Table Mounted Pedestal Mounted –

Table Mounted
Taping action Pneumatic  Drive Pneumatic Drive Pneumatic Drive Manual

Manual

Taping length

 Adjustable Adjustable Adjustable Adjustable

Adjustable

Taping cycles per roll of tape (standard length)

 1000 1000 1000 1000

1000

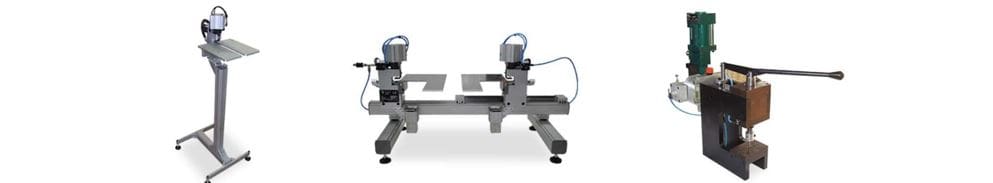

VF De-Pinning Machines

  • Safe, easy and fast methods of pin removal from a drilling stack

 Depinning Depinning Twin

MLB Depinner

Mode of operation

 Manual Manual

Manual
Method of operation Pneumatic Pneumatic

Hydraulic
