Always the right solution for your application
Decisive for the use of a certain spray head is, in addition to the correct area of application, in particular also its installation situation. In many cases, the space conditions, the supply direction for the air and liquid or the ambient temperature are crucial. Over the last decades, we have developed numerous different spray heads for a wide range of requirements.

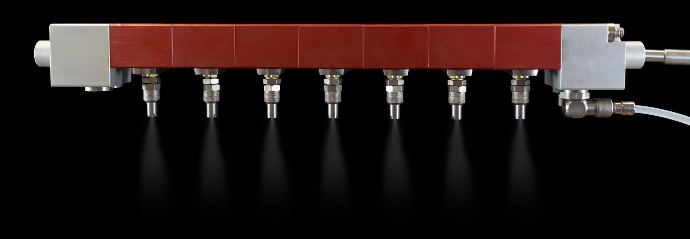

SPRAY BAR SRJ
With the SRJ spray bar the spray width can be individually adjusted to the desired spray width in 50mm steps. The spray bar is therefore ideal for belt lubrication with different dimensions.

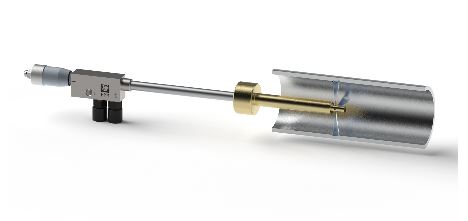

ROUND JET NOZZLE
With the HPM round jet nozzle in combination with a spray head of the LEO series we solve a specific customer problem. The task was to wet pipes evenly and constantly from the inside with lubricant. This could not be solved satisfactorily with a conventional spray head. With the development of the round jet nozzle, we have now developed a possibility to solve this task perfectly.
A spray head of the LEO series is coupled with the newly developed round jet nozzle. The insertion depth is determined by the spray head (see LEO series). Other lengths are available on request.
Due to the separation of spray head and nozzle we are able to keep the round jet nozzle very maintenance friendly. In case of blockages, the nozzle is simply removed and cleaned. The application possibilities are almost unlimited. Be it for corrosion protection or for internal forming. Both the depth and the tube diameter are irrelevant.
With the round jet nozzle from HPM you always have the best solution for your process.

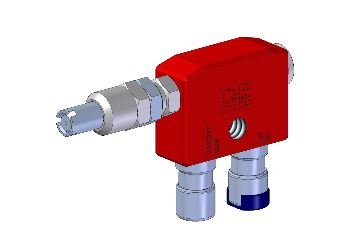

Our QSR has a similar structure to the HTR. In contrast to the HTR, the supply line exits at a 90° angle from the spray jet. The QSR is used wherever this special supply situation is necessary. The QSR is set directly at the nozzle mount.
A 3-point spray head developed specially for sawing. The advantage of this spray head is that the three optimally arranged spray nozzles interrupt the normally present air cushion of the fast rotating saw blade. As a result, the lubricant always optimally arrives at the working position. Locking screws maintain the spray quantity that is set.
Small spray head for tight installation spaces. The quantity is set in the front at the spray jet outlet. The lines are mounted at a 90° angle or with a side exit. Due to the individual supply and the small diameters, this spray head is only suitable to a limited extent for viscous, strongly adhesive fluids.
Spray head with a nozzle head that can be swiveled by 360°. The quantity is set in the front at the spray jet outlet. This spray head is only suitable to a limited extent for viscous, strongly adhesive fluids.

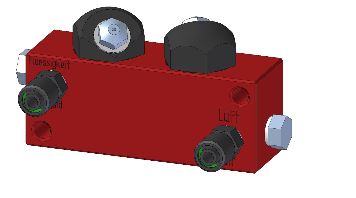

The PCJ 2-fold has two spraying points in contrast to the simple version. Universal spray head that offers enormous advantages for slow saw applications due to the double-sided spraying of the saw blades.
SPRAY JET MONITORING
Play it safe and monitor your process with our proven fork light barriers of the GD series. Their robust metal housing and high degree of protection are designed for demanding applications in mechanical engineering. The control electronics are integrated in the sensor housing.
Maximum security for your process
