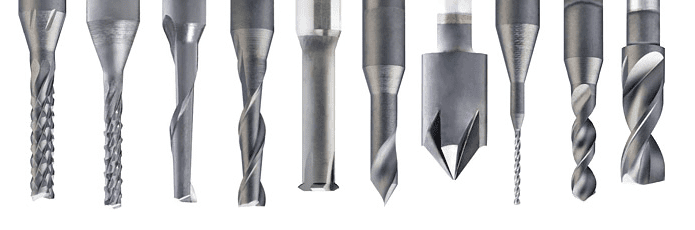

Diamond Coated Tools

Drills, Routers, End Mills, Countersinks, Threadmills, Chamfer Cutters

Drills

Series Range Description Request a Sample
Drills
1640 .20mm – .45mm An optimized undercut design featuring GCT’s MicroSpeed coating suited for drilling halogen free material, laminate with fillers, and high Tg material ≥ 150°C Request a Sample
1638  .50mm -1.25mm An undercut design featuring GCT’s MicroSpeed coating ideally suited for IMS, aluminum, copper, laminate with ceramic fillers and high Tg material ≥ 200°C such as RO4xxx, Arlon 25x, Isola IS 620 Request a Sample
1639 .30mm – .90mm An undercut design featuring GCT’s MicroSpeed coating. ideally suited for drilling materials which are defined for 5G material. Request a Sample
1835 1.30mm – 3.175mm A straight design featuring GCT’s  MicroSpeed coating. Ideally suited for drilling of IMS, aluminum, copper, laminate with ceramic fillers and high Tg material ≥ 200°C such as RO4xxx, Arlon 25x, Isola IS 620 in addition to drilling of glass, quartz, technical ceramics such as Al2O3, AlN, ZrO2, SiC and silicon Request a Sample
1534  3.20mm – 6.40mm A thinned web inverse drill featuring GCT’s MicroSpeed coating. Ideally suited for drilling of IMS, aluminum, copper, laminate with ceramic fillers and high Tg material ≥ 200°C such as RO4xxx, Arlon 25x, Isola IS 620 in addition to drilling of glass, quartz, technical ceramics such as Al2O3, AlN, ZrO2, SiC and silicon Request a Sample
1625  .15mm – 1.50mm An undercut design featuring GCT’s MicrospeedX coating. Ideally suitable for drilling glass, quartz, technical ceramics such as  Al2O3, AlN, ZrO2, SiC und silicon Request a Sample

End Mills

Series Range Description Request a Sample
End Mills
1312/1318 .80mm – 3.00mm 1FL end mill featuring GCT’s MicroSpeed coating. Ideal for the routing of inner and outer contours of IMS made copper, hybrid setup with RO3003, Glass-Teflon laminates as e.g. Taconic TLC-32 Request a Sample
1322/1328 .30mm – 3.175mm 2FL end mill featuring GCT’s MicroSpeed coating. Suited for routing inner and outer contours as well as for depaneling of IMS made of aluminum and copper. Can also be used for depth routing of IMS, aluminum, copper as well laminates with fillers. Request a Sample

Routers

Series Range Description Request a Sample
Routers
1704 .80mm – 3.00mm Router square chip breaker featuring GCT’sMircoSpeed coating. Ideal for the routing of inner and outer contours in halogen free and high Tg material ≥ 150°C and for depaneling, also with copper on outer layers. Offering optimized chip removal and higher bending strength Request a Sample
1700/1760  1.10mm -3.175mm Router with extra fine spiral cut featuring GCT’s MircoSpeed coating. Ideal for the routing of inner and outer contours as well as for the depaneling of assembled PCB’s. Suited for halogen-free and high Tg material up to 185°C and laminates with fillers. Significantly reduced burr formation and improved surface quality Request a Sample
1750/1754 1.50mm – 2.40mm Router with extra fine spiral cut featuring GCT’s MicroSpeedX coating. Ideal for the routing of inner and outer contours as well as for the depaneling of assembled PCB’s. Suited for laminates with ceramic fillers and high Tg material ≥ 200°C such as RO4xxx, Arlon 25x, Isola IS 620 Request a Sample
1200 1.20mm –3.175mm Router with diamond cut featuring GCT’s MicroSpeed coating. Ideal for the routing of inner and outer contours as well as for the depaneling of assembled PCB’s.  Well suited for high Tg up to 185°C as well as laminates with fillers. Request a Sample
1250/1254 1.50mm –3.175mm Router with diamond cut featuring GCT’s MicroSpeedX coating. Ideal for the routing of inner and outer contours in CFRP, CFP and GRP such as Durostone® and Roedurtherm. Request a Sample

Chamfer Cutter, Countersinks, Thread Mills

Series Range Description Request a Sample
Chamfer Cutter, Countersinks, Thread Mills
138x

30°, 45°, 60°, 82°, 90°

 Chamfer cutter featuring GCT’s MicroSpeed coating. Suited for scoring and chamfering of flex-rigid PCB, high Tg material, laminate with fillers, aluminium and copper Request a Sample
1590/1596 90°, 120°, 140° 5FL countersink featuring GCT’s MicroSpeed coating. Suited for the chamfering of holes and countors in IMS and PCB’s. Request a Sample
1940 M1.6 – M5 Thread mill featuring GCT’s MicroSpeed coating. Ideal for inner thread of IMS, aluminum as well as copper. Request a Sample
190x

M1.6-M8

 Thread mill featuring GCT’s MicroSpeedX coating. Ideally suited for internal thread milling in glass, quartz, technical ceramics such as Al2O3, AlN, ZrO2. Request a Sample
