PPJ Series


External Lubrication

  • Compact and innovative design
  • For spraying liquids with a max. viscosity of 2,300 mm² / s at 20 ° C or 500 mm² / s at 40 ° C
SKU: N/A Categories: ,


Scope of delivery:

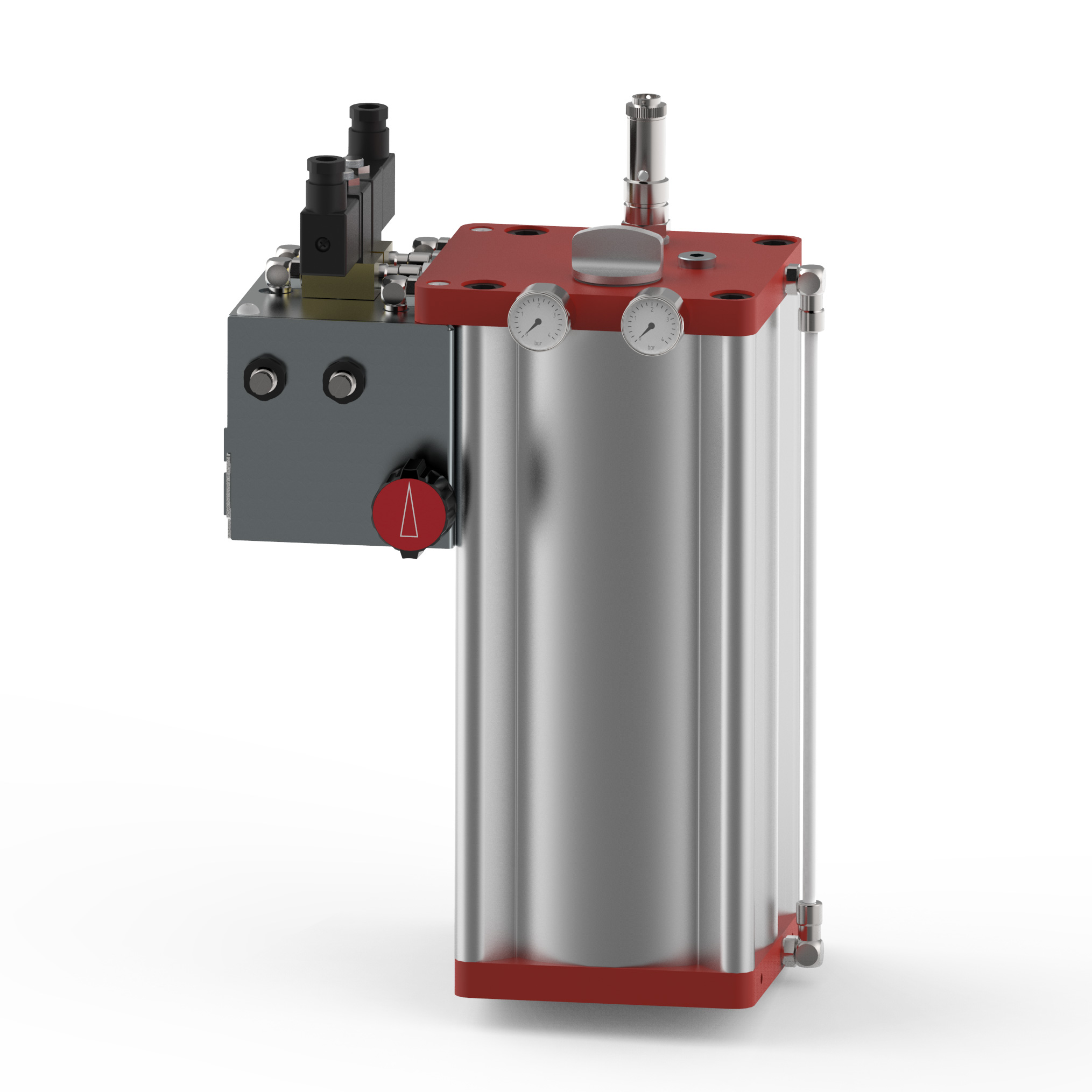

The valve and tank assembly consists of a pressure tank (1L / 3L / 5L) with bracket for wall mounting or optional feet, valve assembly with maintenance unit.
Depending on the variant, a spray head or up to 3 or 6 groups of spray heads as well as our JOP drop dispenser can be connected.


  • compact, innovative design
  • Increased ease of use thanks to the separate control of air and liquid pressure
  • excellent spray results even with higher viscosity media


The unfiltered and non-oiled network air (4 – 9 bar) is connected to the maintenance unit. The spray air pressure is set on the pressure reducer with a manometer. We recommend a low spray air pressure of 0.7 to max. 2.5 bar.
The fluid pressure is adjusted via a fine pressure reducer. This must always be at least 0.5 bar below the spray air pressure.

Spray start, spray duration and spray end are determined by activating the valves from the customer’s control.

The current liquid level in the pressure vessel is visually visible through an external PA tube.

The PPJ series can optionally be equipped with a float switch (signals pre-warning – empty).

The system is suitable both for the initial equipment of machines and for subsequent installation.

Additional information




Spray Heads I Drop Dispenser
